Chloride profiles - 2 years
Chloride profiles measured on
concrete cores collected from the 15 blocks placed at the
Fehmarnbelt exposure site are presented below. The profiles were
measured after about two years (735 days) of exposure to the marine
environment, and for each type of concrete, two cores were drilled,
i.e. one from below sea level and one from the splash zone.
All profiles were measured
according to the method described in DS 423.28:1984
Testing of concrete - Hardened concrete - Chloride content,
and the data presented below have not been corrected for variations
in aggregate packing near the concrete surface.
![Fehmarn_chloride profiles_2 years_A](/media/6062/fehmarn_concrete_a_chloride_profiles__2_years_600x392.jpg)
![Fehmarn_chloride profiles_2 years_B](/media/6067/fehmarn_concrete_b_chloride_profiles__2_years_600x392.jpg)
![Fehmarn_chloride profiles_2 years_C](/media/6072/fehmarn_concrete_c_chloride_profiles__2_years_600x392.jpg)

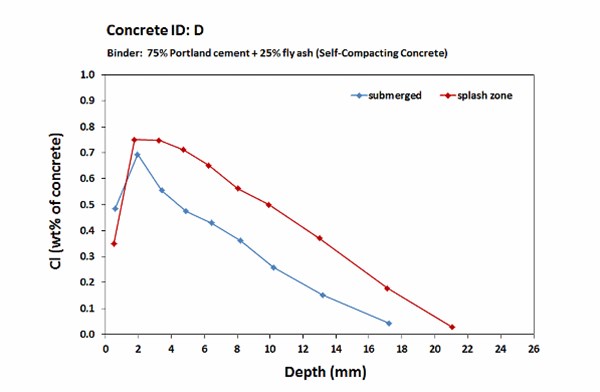

![Fehmarn_chloride profiles_2 years_D](/media/6077/fehmarn_concrete_d_chloride_profiles__2_years_600x392.jpg)
![Fehmarn_chloride profiles_2 years_E](/media/6082/fehmarn_concrete_e_chloride_profiles__2_years_600x392.jpg)
![Fehmarn_chloride profiles_2 years_F](/media/6087/fehmarn_concrete_f_chloride_profiles__2_years_600x392.jpg)

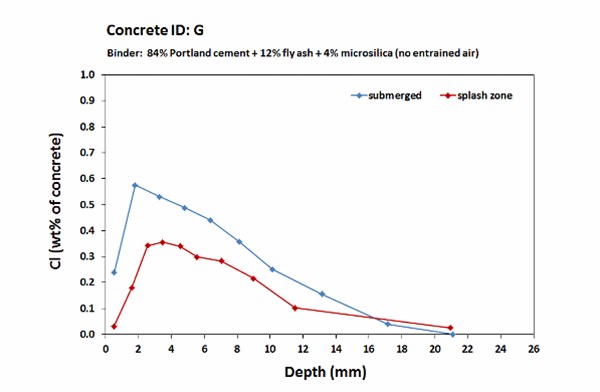

![Fehmarn_chloride profiles_2 years_G](/media/6092/fehmarn_concrete_g_chloride_profiles__2_years_600x392.jpg)
![Fehmarn_chloride profiles_2 years_H](/media/6097/fehmarn_concrete_h_chloride_profiles__2_years_600x392.jpg)

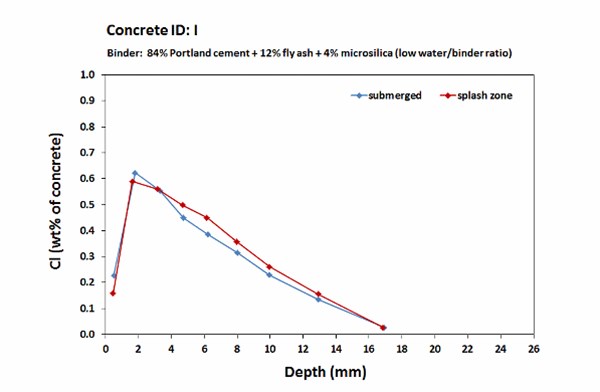

![Fehmarn_chloride profiles_2 years_I](/media/6102/fehmarn_concrete_i_chloride_profiles__2_years_600x392.jpg)
![Fehmarn_chloride profiles_2 years_J](/media/6107/fehmarn_concrete_j_chloride_profiles__2_years_600x392.jpg)
![Fehmarn_chloride profiles_2 years_K](/media/6112/fehmarn_concrete_k_chloride_profiles__2_years_600x392.jpg)
![Fehmarn_chloride profiles_2 years_L](/media/6117/fehmarn_concrete_l_chloride_profiles__2_years_600x392.jpg)
![Fehmarn_chloride profiles_2 years_M](/media/6127/fehmarn_concrete_m_chloride_profiles__2_years_600x392.jpg)
![Fehmarn_chloride profiles_2 years_N](/media/6132/fehmarn_concrete_n_chloride_profiles__2_years_600x392.jpg)
